Description:

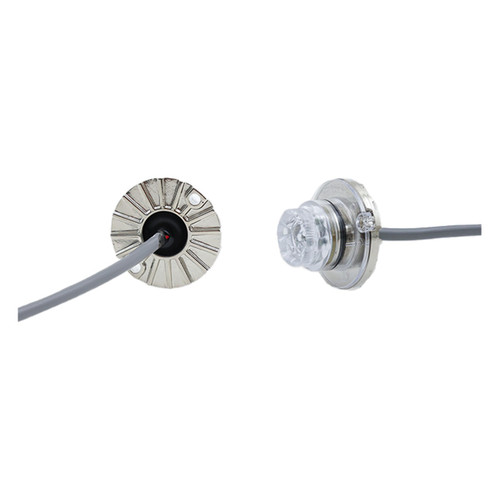

Powerful, compact LED hideaway light designed to deliver high-intensity, customizable warning placed in existing light housings for a clean, undercover look.
Features
- Retrofits with existing one inch strobe tube cutouts in headlight, taillight or corner lights in all types of commercial vehicles
- Optional cruise mode reduces light output to 20% brightness
- Use with optional bezels to surface mount to any flat area on the vehicle body for additional lighting
Specifications
| Input Voltage Range | 9-32 VDC |
|---|---|
| Operating Temperature | -40° C to +85° C / -40° F to +185° F |
| LED Options | Single or split colors: 6 LEDs |
| LED Colors Available | Amber, Blue, Green, Red, White |
| Light Sync | Up to 24 lightheads (Sync 2) |
| Dimensions | Insert: 1.5" diameter x 0.9” depth (3.8 cm DIA x 2.3 cm D) Bezel: 2.2” diameter x 1.65" depth (5.6 cm DIA x 4.2 cm D) |
| Certifications* | SAE J595, ECE R10 *Valid when using compliant patterns, color configurations and active modules |
| Current Consumption | <1 amp/module |
| Flash Patterns | 15 |
Part numbers on this listing
| Part # | Description | Warranty |
|---|---|---|
| ELUC3H010R | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Single Color Red | 5 years |
| ELUC3H010W | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Single Color White | 5 years |
| ELUC3H010B | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Single Color Blue | 5 years |
| ELUC3H010A | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Single Color Amber | 5 years |
| ELUC3H010D | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Red/White | 5 years |
| ELUC3H010E | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Blue/White | 5 years |
| ELUC3H010F | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Amber/White | 5 years |
| ELUC3H010H | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Green/White | 5 years |
| ELUC3H010J | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Red/Blue | 5 years |
| ELUC3H010K | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Red/Amber | 5 years |
| ELUC3H010L | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Red/Green | 5 years |
| ELUC3H010M | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Blue/Amber | 5 years |
| ELUC3H010N | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Blue/Green | 5 years |
| ELUC3H010P | Universal UnderCover Screw-In LED Insert Single Light Kit, 9-32 Vdc w/ 10’ 5-wire harness: includes insert, Lens #1 (Extreme Angle) & Inline Flasher – Dual Color Green/Amber | 5 years |
The Public Safety Store is an authorized SoundOff Signal dealer. Questions about fitment, flash patterns or wiring? Contact our team.
